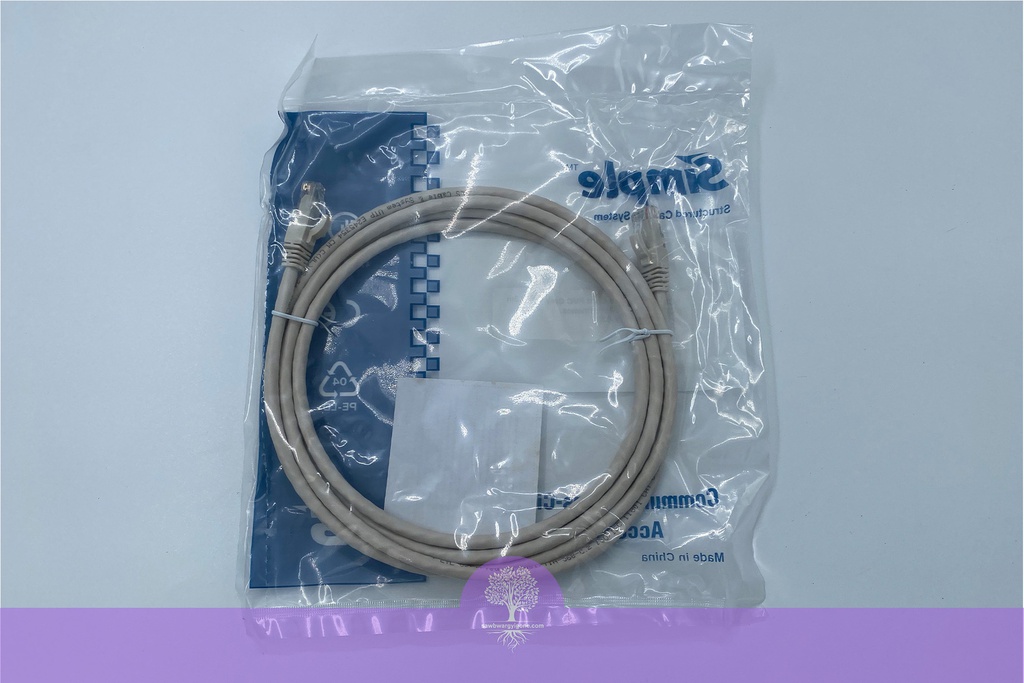

3M LS Simple Cat.6 RJ45 Patch Cord
| Category: ANSI/TIA-568-C.2 Category 6A |
| Wiring scheme: T568A/T568B |
| Current Rating: 1.5 Amps |
| Insulation Resistance: ≥ 5000 MΩ·m |
| Contact Resistance: < 20 milli-ohm |
| Voltage: < 30V/AC |
| Insertion Life: 750 Mating cycles |
| Pull Force: 20lbs (89N) |
| Temperature: -20 ~ 68 ℃ |
| Humidity: 10% ~ 90% (RH) |
| Standards: 47 CFR part 68 and IEC 603-7 |
| Contact accept: 26 AWG stranded wire or others |
| Plug housing: Polycarbonate (PC), UL 94V-2 over rated |
| Contact blade: Phosphor bronze plated with 50uin thick gold over 100uin thick nickel undercoat |
| Cable Jacket: PVC or LSZH |
| Dielectric strength: > 1000V/AC (RMS) |
Factory terminated, providing the quality required to support your channel requirements.
It's fully booted and have clip protection for simple removal.
It offers a high performance alternative to satin modular line cords where crosstalk, EMI or distance may be considerations.
