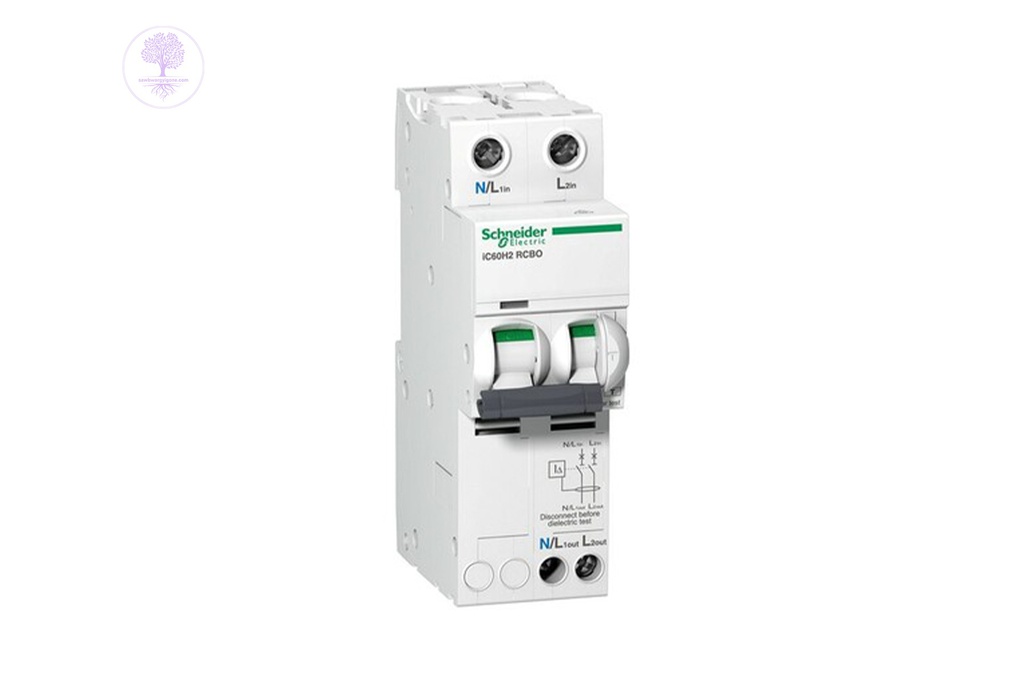

2P, C curve, 30mA, 25A, Schneider RCBO IC60H2 ELCB
| Range: Acti9 |
| Breaking capacity: 10000 A Icn at 220 V AC 50/60 Hz conforming to IEC 60898-1 6000 A Icn at 400 V AC 50/60 Hz conforming to IEC 60898-1 |
| Product Name: Acti9 iC60 RCBO |
| Product or component type: Residual current breaker with overcurrent protection (RCBO) |
| Device short name: IC60H2 RCBO |
| Earthing system: TT,TN-S |
| [In] rated current: 25 A at 50 °C |
| Curve code: C |
| Earth-leakage sensitivity: 30 mA |
| Pole Description: 2P |
| Circuit breaker application: Distribution |
- This Acti9 iC60 is a modular residual current breaker with overcurrent protection (RCBO).
- It is a 2P circuit breaker with 2 protected poles, In rated current of 25A and C tripping curve.
- The earth leakage protection class is A type with a sensitivity of 30mA.
- The earth-leakage protection time delay is instantaneous.
- The Icn rated short circuit breaking capacity is up to 10000A according IEC 61009-2-2 standard.
- Its unique Visitrip indicator reduces intervention time by showing the faulty circuit.
- Its Visisafe green strip guarantees the physical opening of the contacts to allow downstream maintenance.
- Its fast closing mechanism independent of manual operation improves its service life.
- This product is compliant with AS/NZS 61009.1 and IEC 61009-1 standards.
- It has an electrical endurance going up to 5000 cycles and a mechanical endurance going up to 20000 cycles.
- The Ue operational voltage is 240VAC.
- The Ui rated insulation voltage is 400VAC.
- The Uimp rated impulse withstand voltage is 4kV.
- The frequency is 50Hz.
- It is DIN rail mountable.
- The width in 9mm pitches is 4.
- The product color is white (RAL9003).
- The dimensions are (W) 36mm x (H) 110mm x (D) 75.5mm.
- The weight is 332g.
- It has an IP20 degree of protection.
- It becomes IP40 once in modular enclosure according to IEC/EN 60529 standard.
- The operating temperature is from -15°C to 60°C. The storage temperature is from -40°C to 85°C.
