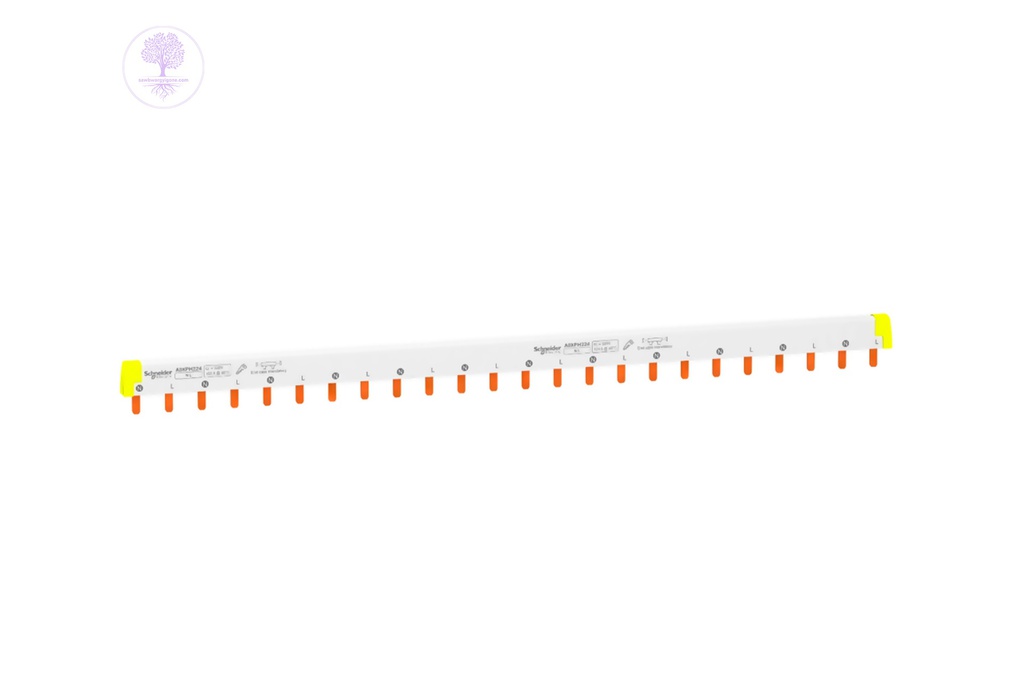

2P, 100A, 24modules, Schneider Comb Busbar

124,500.00 MMK 124500.0 MMK 124,500.00 MMK

124,500.00 MMK

  • Product Type
  • Connector Type
  • Lines description

This combination does not exist.

ADD TO CART
Related Documents:
A9XPH224.pdf
Product Type: Comb Busbar
Connector Type: Tooth
Lines description: 1L

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

  • This Acti 9 horizontal comb busbar 18mm modules for Acti 9 iC60 or Acti 9 iK60 is cuttable.
  • It is dedicated to N+1L installations.
  • The type is NL (Neutral, Line).
  • It is a set of 1 device.
  • It is suitable for 12 devices (1P+N).
  • The length is 430mm.
  • The total number of modules of 18mm is 24.
  • The pin cross section is 16mm2.
  • The type of electric connection is PIN.
  • The number of phase is 1.
  • The number of poles is 2.
  • The Ie rated operational current at 40°C is 100A The Isc short circuit current is compatible with the breaking capacity of Schneider Electric circuit breakers.
  • The Ui rated insulation voltage is 500VAC.
  • The Ue rated operational voltage is 415VAC.
  • The color of the device is white RAL9003.
  • The pollution degree is 3.
  • According to IEC 60695-2-1 standard the fire resistance is self-extinguishing at 960°C within 30s.
  • It complies with IEC 60947-7-1 and IEC 61439-2 standards.
