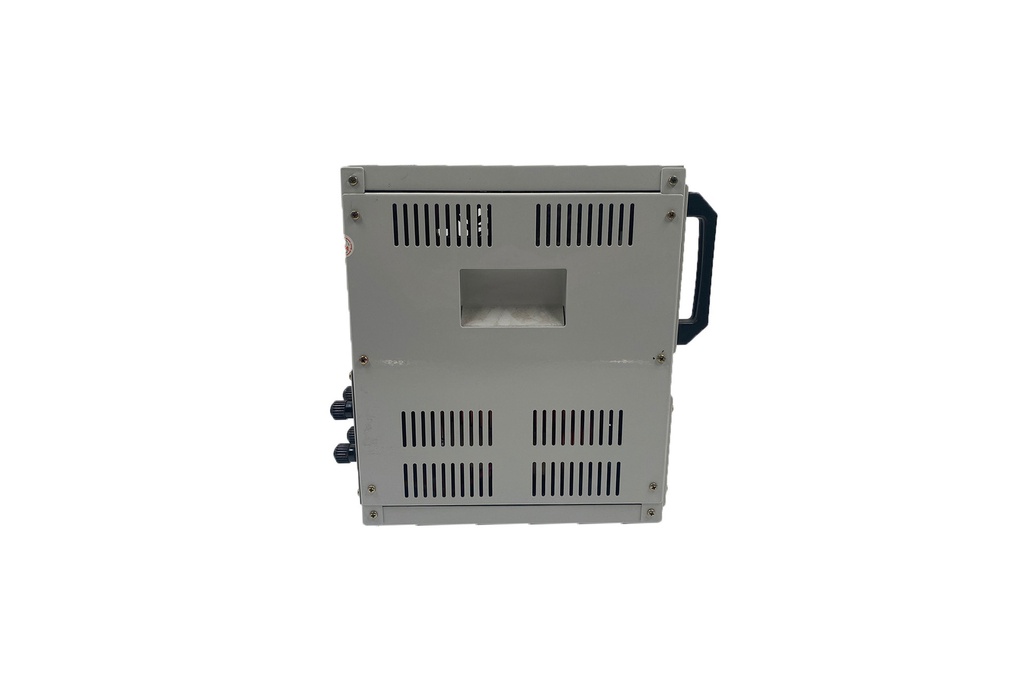

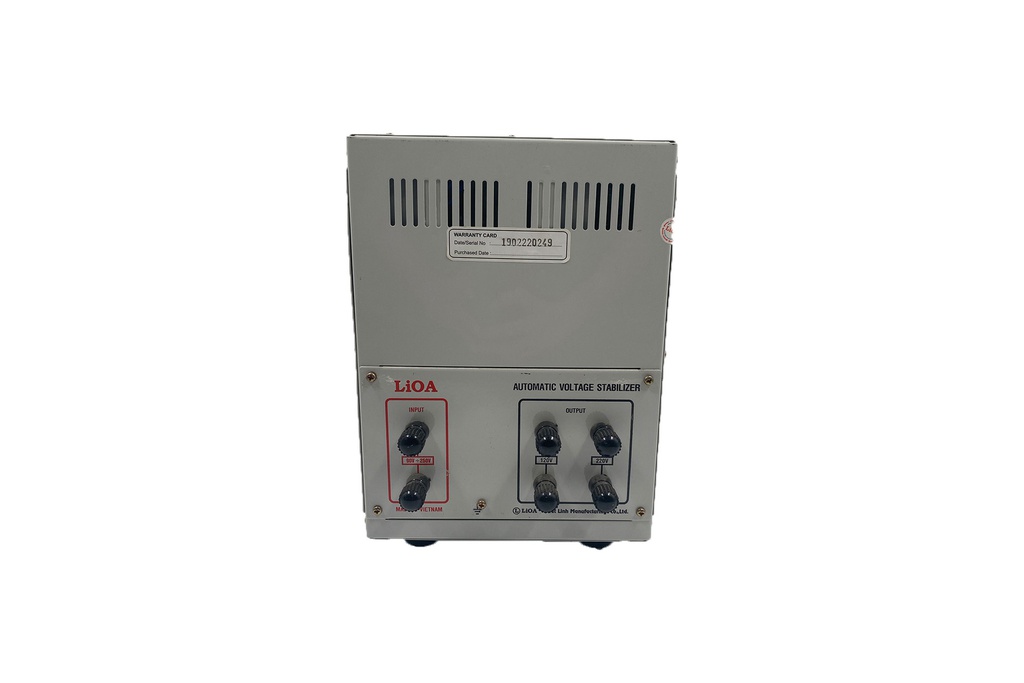

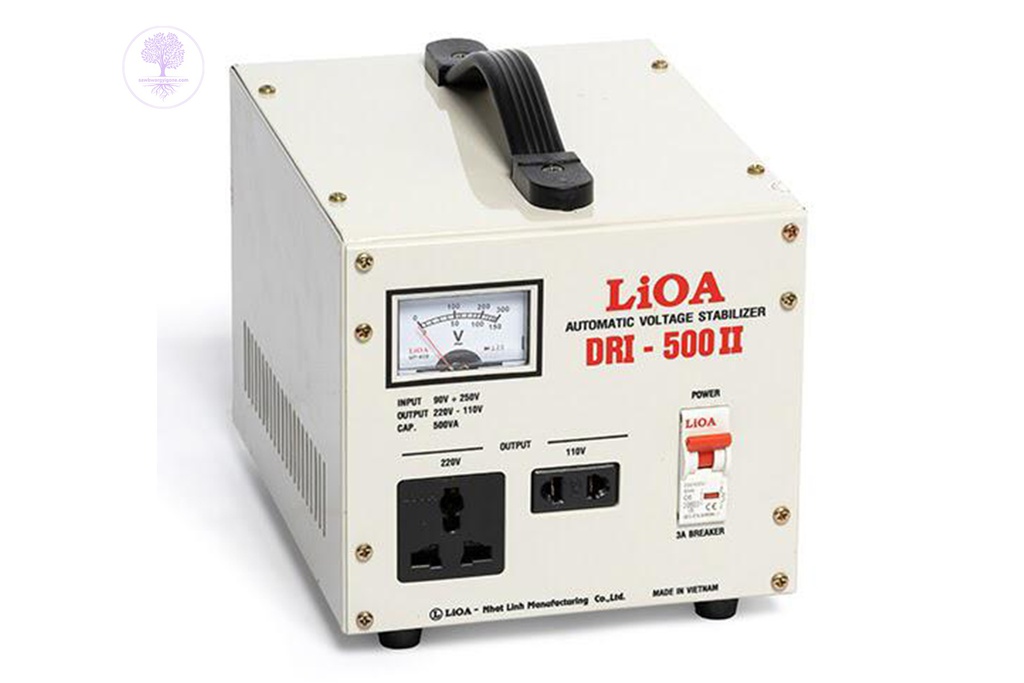

0.5KVA (90V), LiOA, 1 Phase Automatic Voltage Stabilizer
| Insulation Resistance: More than 3MΩ at DC 500V |
| Dielectric strength: Tested at AC 2000V for 1 min |
| Input Voltage range (VAC): 90-250 |
| Output power capacity: 0.5 KVA 1 phase |
| Nominal Output Voltage: 110-220 VAC |
| Frequency: 45-62 Hz |
| Control System: Servo Motor |
| Response Time Against 10% Input Voltage Deviation: 0.4s ÷ 1s |
| Ambient Temperature: -5°C ÷ +40°C |
- Automative voltage stabilizer with servo motor control system
- 100% copper wire and compact design
- Protecting the over voltage with Relay System
- Protecting the overload with Safety Breaker
- Protecting the fluctuation voltage with Auto bypass and delay system
- Including the two socket outlets (110V & 220V) in front of AVS
- Including the voltage meter which display input & output voltage by selector switch and ampere meter
