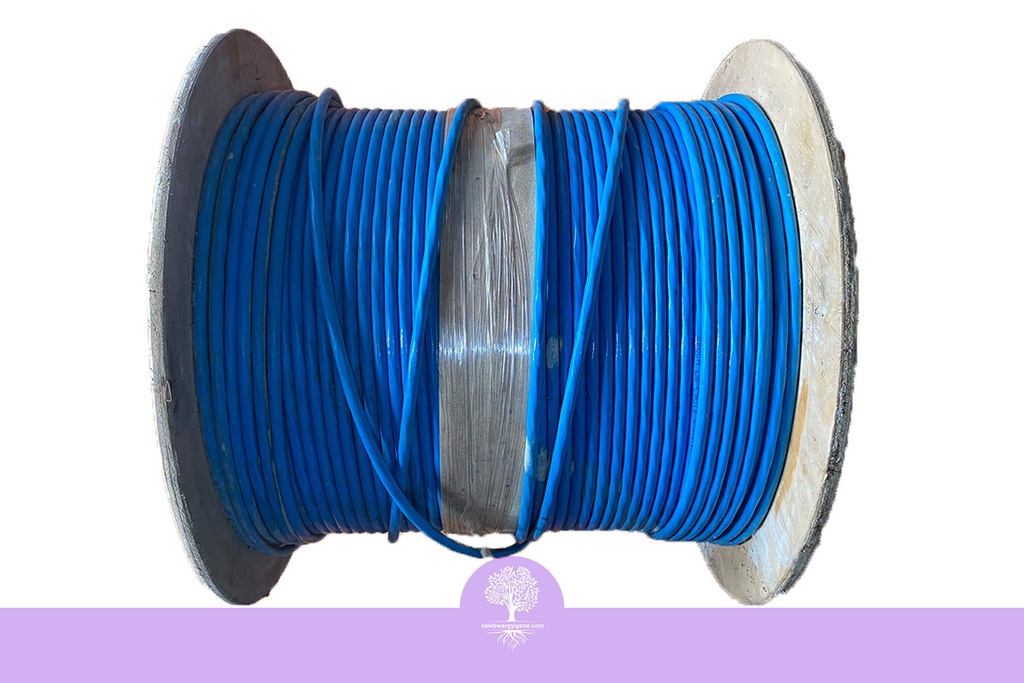

305M/Reel CAT6 F/UTP LS Simple Cable 4 Pair, Blue

• Insulation Resistance
  • ≥ 5000 MΩ·m
• DC Resistance
  • ≤ 9.5Ω/100m
• Dielectric strength
  • 2.5 / 2 DC kV/sec
• Return loss
  • ≥ 20 + 5 * log(freq)       , 4     ≤  f ＜   10MHz, ≥ 25 , 10   ≤  f ＜   20MHz, ≥ 25 – 7 * log(freq/20)  , 20   ≤  f ≤  250MHz dB/100m
• DC Resistance Unbalance
  • ≤ 2.00%
• Capacitance Unbalance (Pair to Ground)
  • "≤ 1600 pF/km (800~1000Hz) "
• Impedance (Characteristic mean)
  • 100 ± 5%  (at 100MHz) Ω
• Attenuation (Insertion Loss)
  • ≤ 1.82*√(freq) + 0.0169*(freq) + 0.25/√(freq)    , 4 ~ 250 MHz dB/100m
• NEXT Loss
  • ≥ 75.3 – 15*log(freq)  ,4 ~ 250MHz dB/100m
• Power sum NEXT Loss
  • ≥ 72.3 – 15*log(freq)  ,4 ~ 250MHz dB/100m
• ELFEXT Loss
  • ≥ 68 – 20*log(freq)     ,4 ~ 250MHz dB/100m
• Power sum ELFEXT Loss
  • ≥ 65 – 20*log(freq)     ,4 ~ 250MHz dB/100m
• Propagation Delay
  • ≤ 534 + 36 / √ (Freq)   ,4 ~ 250MHz ns/100m
• Propagation Delay Skew
  • ≤ 45, 4 ~ 250MHz ns/100m
