2HP, R32, GULD50T1/A-S+ GULD50W1/NhA-S, GREE, Cassette Type Air con (U MATCH, Inverter, White)
| Power Input: 1.46 kW |
| Model: GULD50T1/A-S+ GULD50W1/NhA-S |
| EER: 3.63 W/W |
| Outline Dimension (Indoor Unit): 570 x 570 x 260 (WxDxH, mm) |
| Package Dimension (Indoor Unit): 698 x 653 x 295 (WxDxH, mm) |
| Net Weight/ Gross Weight (Indoor): 16.5/21.0 kg |
| Sound Pressure Level (Outdoor): 48 dB(A) |
| Outline Dimension (Outdoor Unit): 675 x 285 x 553 (WxDxH, mm) |
| Package Dimension (Outdoor Unit): 794 x 376 x 605 (WxDxH, mm) |
| Net Weight/ Gross Weight (Outdoor): 24.5/27.0 kg |
| Rated Cooling Capacity: 5.30 kW |
| Power Supply (Indoor): 220-240V~50/60Hz |
| Air Volume (SH/H/M/L), (Indoor): 720/650/600/500 m^3/h |
| Sound Pressure Level (SH/H/M/L), (Indoor): 43/41/38/35 dB(A) |
| Connection Pipe, Liquid Pipe (Indoor): Ф1/4 in |
| Connection Pipe, Gas Pipe (Indoor): Ф1/2 in |
| Connection Pipe, Water Pipe (Indoor): Ф25×1.50 mm |
| Power Supply (Outdoor): 220-240V~50/60Hz |
| Air Volume (Outdoor): 1800 m^3/h |
| Connection Pipe, Liquid Pipe (Outdoor): Ф1/4 in |
| Connection Pipe, Gas Pipe (Outdoor): Ф1/2 in |
| Outline Panel Dimensions (Indoor Unit): 620 x 620 x 47.5 (WxDxH, mm) |
| Packaged Panel Dimensions (Indoor Unit): 693 x 693 x 115 (WxDxH, mm) |
| Net Weight/ Gross Panel Weight (Indoor): 3.0/4.5 kg |
| Indoor Unit: GULD50T1/A-S |
| Outdoor Unit: GULD50W1/NhA-S |
U-Match, Inverter Series (Cooling Series)
It is a kind of split system that the outdoor unit can be connected to various indoor unit (duct, cassette or floor ceiling type) with its cooling capacity from 5kW to 16kW.
- Design of double ambient temperature sensors makes precision temperature monitoring.
- With low ambient temperature cooling is normal in 5C.
- The outdoor unit is universal and can be matched with duct type, cassette and floor ceiling.
- The unit is designed with smaller dimension, and the body weight of the whole series are less than 96kg, which is easy to install and transport.

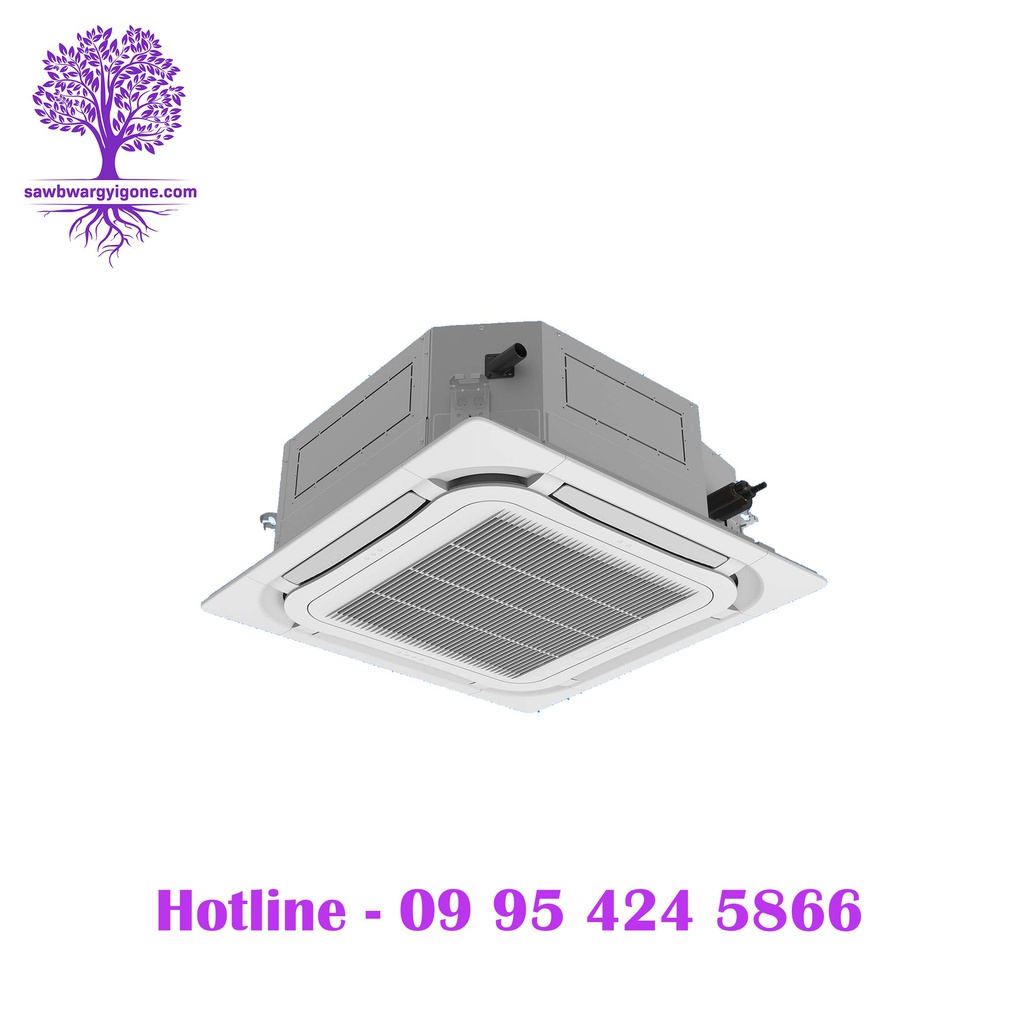

Cassette type
- Drain pump filled as standard with increased lift of 1000mm
- Special low noise fan design.
- Equip with 360 air discharge panel, providing more comfortable air supply.
Features of U-Match
- Quality motor
- Inner Groove Copper
- Auto Clean
- Self-diagnosis
- Easier Maintainability
- High ESP
- Wide Voltage Range
- Wide Operation Range
