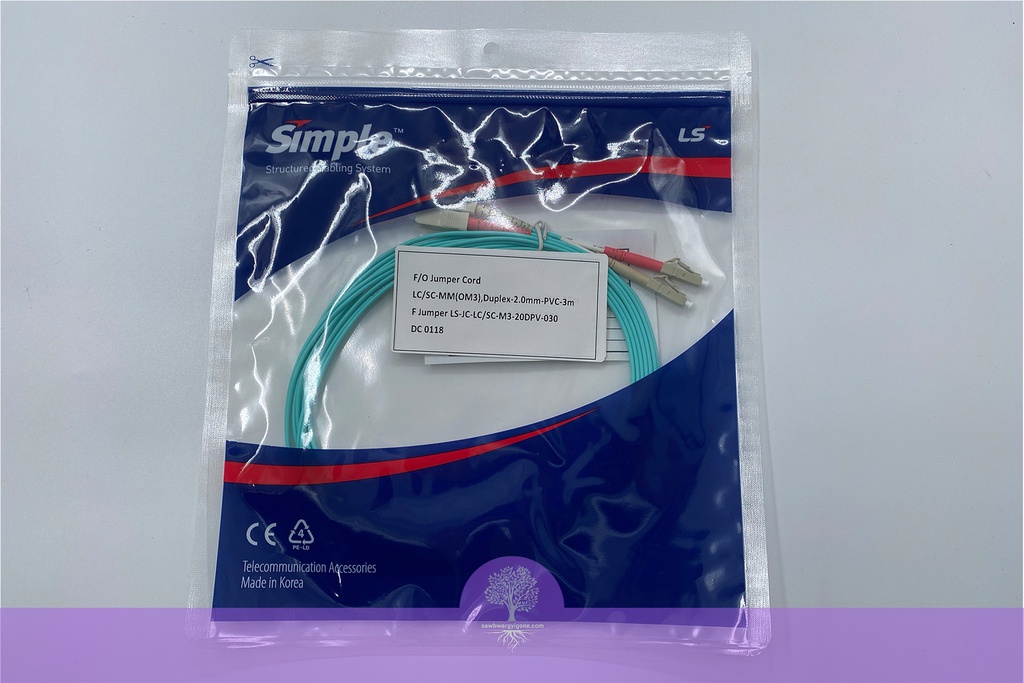

LC-SC-3M (GR), OM3, LS Simple Fiber Optic Patch Cord, Multi Mode, Duplex
| Temperature: -20°C ~ 70°C ( -4°F ~ 158°F ) |
| Housing: High Impact Flame Retardant Plastic, UL 94V-0 Rated |
| Cable Jacket: PVC or LSZH |
| Sleeve: Ceramic (Zirconia) or Single/Multi mode , Phosphor Bronze for Multimode |
| Durability: Max. 0.2dB increase after 500-Cycle |
| Return loss: ≥50dB, ≥60dB, ≥20dB |
| Retention Force: Insertion Loss Increment ≤0.2dB after 3.4kgf/10sec. |
| Ferrule: Ceramic (Zirconia) for Single/Multi mode |
| Insertion Loss: ≤0.3dB (Typ. 0.2dB) |
LS Simpleâ„¢ Fiber Optic Cord & Cable with One side Connector
. Various type of connectors (SC, LC, ST, FC, MT-RJ)
. Optimal optical performance through high quality ferrules
. 100% factory tested for Insertion Loss & Return Loss
