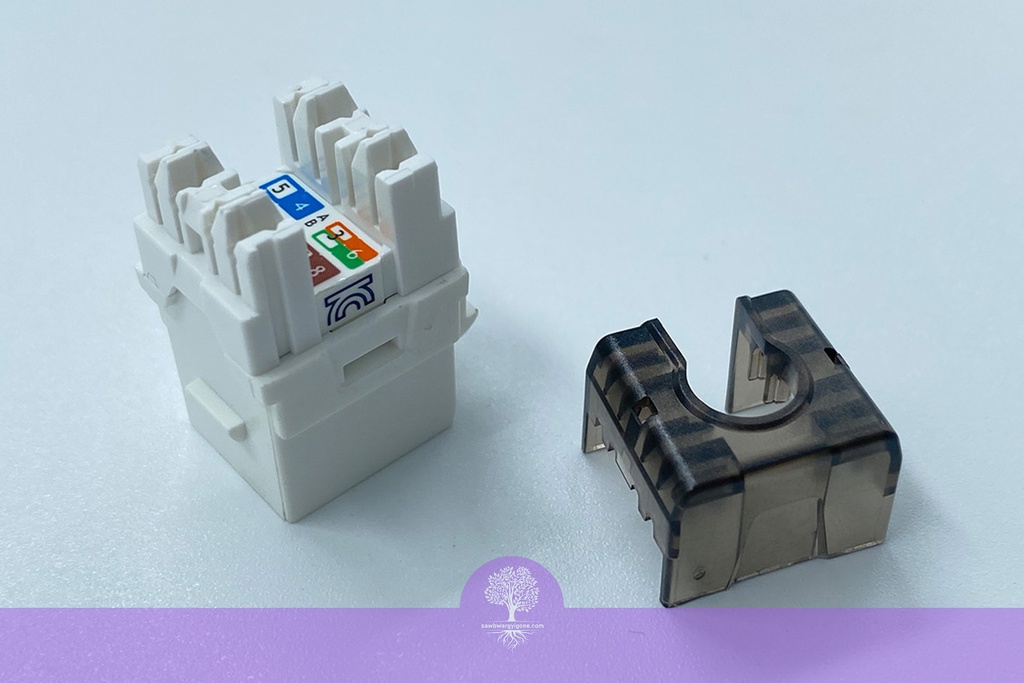

ERI type, Unshielded Modular Jack LS Simple 180° C6A
| Approvals: UL Listed |
| Category: ANSI/TIA-568-C.2 Category 6A , 500MHz |
| Meet: 47 CFR part 68 |
| Wiring scheme: T568A/T568B |
| Current Rating: 1.5 Amps |
| Insulation Resistance: > 500 Mega-ohm |
| Contact Resistance: < 20 milli-ohm |
| DC Resistance: < 0.1 ohm max |
| Insertion Life: 2000 Mating cycles |
| Pull Force: 20lbs (89N) |
| Temperature: -40°C ~ 68°C |
| Humidity: 10% ~ 90% (RH) |
| IDC accept: 23AWG ~ 26AWG (Solid wire) |
| Cap: PA11 + Anti-EMI material, UL 94V-0 rated, Black |
| Jack Contacts: Phosphor bronze flat wire, plated with 1.27μm (50μin) thick hard gold on contact area over nickel underplate |
| Contact Bracket: PC, UL 94V-2 rated, Transparent |
| PCB: FR4, UL 94V-0 rated |
| IDC Terminals: Phosphor Bronze, plated with tin over nickel underplate |
| IDC Block: PC, UL 94V-2 rated |
| Re-termination: 200 No. of Crimping |
| Housing & Door: ABS+PC, UL 94V-0 rated |
| Dielectric withstand voltage, RMS, contact to contact): <1000VAC @ 60Hz |
Comply with ANSI/TIA-568-C.2 performance levels
Architectural design and flexibility - support max. 6-connection channels
Qualifies for the LS 25-Year Extended Product Warranty and Applications
Assurance when included as part of a registered LS Category 6A Channel
Cable consists of 24AWG~26AWG wire, each four pair twisted at a different lay length.
Wiring T568A or T568B
Comply with plug specifications of 47 CFR part 68 for 8 Pin Modular Plug
A various of color support
RoHS compliant
