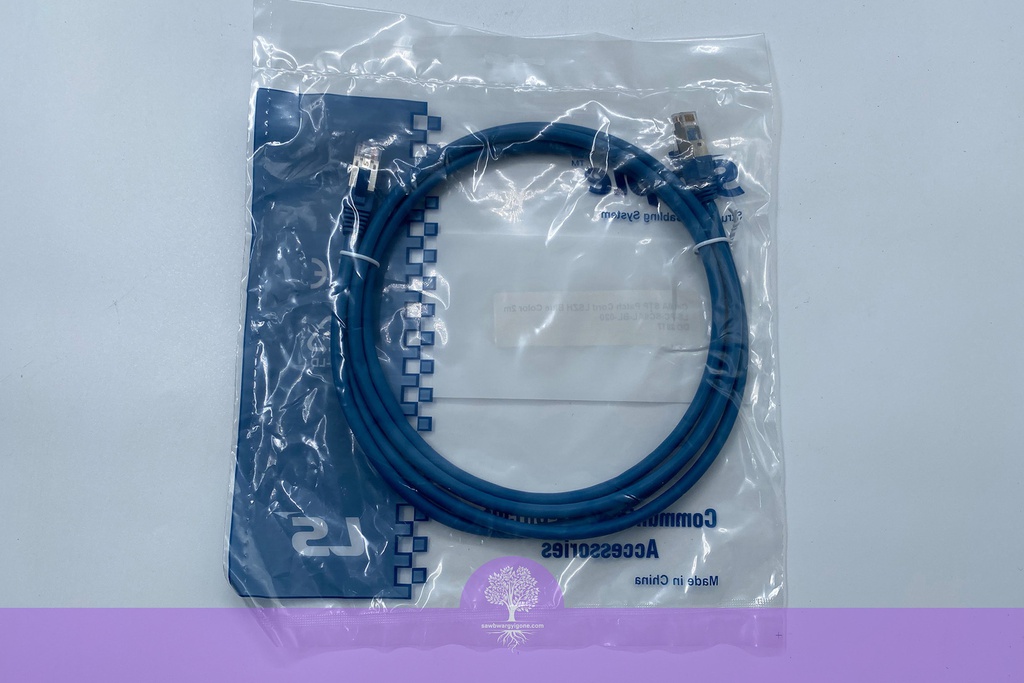

1M LS Simple CAT6A Shielded RJ-45 Patch Cord , Blue
| Category: ANSI/TIA-568-C.2 Category 6A |
| Wiring scheme: T568A/T568B |
| Current Rating: 1.5 Amps |
| Insulation Resistance: > 500 Mega-ohm |
| Contact Resistance: < 20 milli-ohm |
| Voltage: < 30V/AC |
| Insertion Life: 750 Mating cycles |
| Pull Force: 20lbs (89N) |
| Temperature: -20 ~ 68 ℃ |
| Humidity: 10% ~ 90% (RH) |
| Standards: 47 CFR part 68 and IEC 603-7 |
| Contact accept: 26AWG stranded wire |
| Plug housing: Polycarbonate (PC), UL 94V-2 over rated |
| Contact blade: Phosphor bronze plated with 50uin thick gold over 100uin thick nickel undercoat |
| Cable Jacket: PVC or LSZH |
| Dielectric strength: > 1000V/AC (RMS) |
Comply with ANSI/TIA-568-C.2 performance levels
Architectural design and flexibility - support max. 6-connection channels
Qualifies for the LS 25-Year Extended Product Warranty and Applications
Assurance when included as part of a registered LS Category 6A Channel
Cable consists of 24AWG~26AWG wire, each four pair twisted at a different lay length.
Wiring T568A or T568B
Comply with plug specifications of 47 CFR part 68 for 8 Pin Modular Plug
A various of color support
RoHS compliant
